Model 302AC

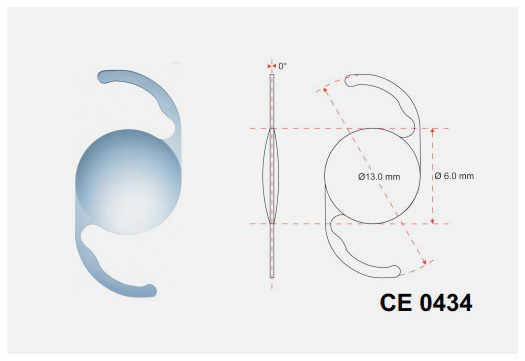

IOL Design	Single piece for posterior capsular bag
Material	Hydrophobic Acrylic with UV absorbers Aspheric: Model 302AC
Optic Diameter	6.0 mm
Overall Length	13.0 mm
Haptic Angle	0�
Optic Design	Biconvex, square edged optic and haptic
Diopter Range	0D to 30D 0D to 10D in 1D increments 10D to 30D in 0.5D increments
Refractive index	1.5
Material water content	<0.5%
A-Constant	117.9
Method of Sterilization	Ethylene Oxide (ETO)
ACD*	4.75
UV cut off at 10%	≥ 385 nm (SAL 302AC)
Recommended insertion instrument	MDJ: Single use injector sets, rounded, Incision size < 2.5mm (Model 00263 XSBI) Incision size < 2.2mm (Model 00265 Mini B) Medicel AG : Accuject: Single use injector sets, 2.2-1P, incision size < 2.5 mm
Package	The soft hydrophobic acrylic intraocular lenses are supplied dry, in a lens tray packaged in a Tyvek peel pouch.
